Sonetto 10 + 8 400/50 T270CE

A complete solution suitable to satisfy your air demand

Quiet operation

• Special noise insulation ensures very low noise levels.
• Equipment can be easily installed inside the workshop, close to the usage point, minimizing risk of air leakages and
without any disturbance of your working environment.

Cost efficiency

• Reliable design.
• Low maintenance costs.
• Long service intervals.
• Low energy consumption, thanks to reputed IE3 Motors and advanced screw compressor element.
• High performing lubrication and cooling systems.

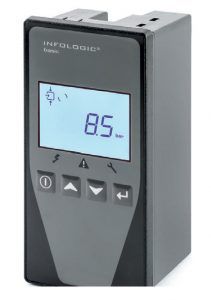

Infologic2 basic controller

The Infologic2 basic controller offers advanced monitoring with maintenance, failure management and simplifies the
configuration and control of your operation.
• Icon based display.
• Pressure and temperature readings.
• Remote start stop.
• Automatic restart after a power failure.
• Maintenance service warnings.
• Fault management.
• Fast pressure setting, directly on the controller.



Technical specifications



Max.
Working
Pressure
Reference
Working
Pressure
Free Air Delivery @ reference
conditions
Motor Power Noise
Level**
Weight
Model  Bar  Bar  cfm  kW  hp  db(A) Base
Mounted
kg
270L Tank
kg
270L Tank
Dryer kg
270L Tank
Dryer and
Filters kg
 Sonetto 10  8  7.5  40.3  7.5  10  65  170  217  250 255

* Unit performance measured according to ISO 1217, Annex C, latest edition. ** Noise level measured according to ISO 2151 2004.
